G12 Remote Control System
G12 Remote Control System

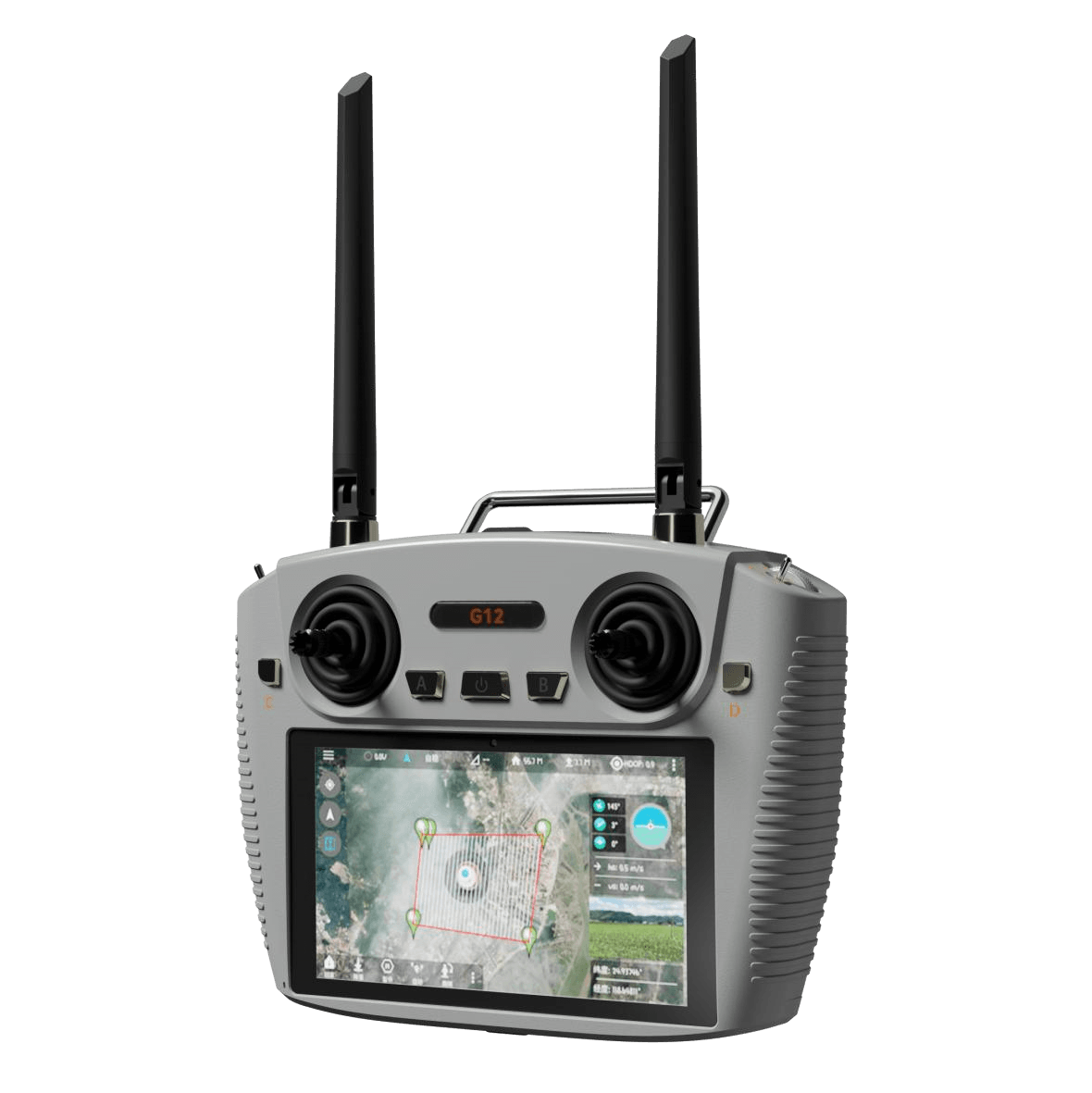

The G12 Remote Control System is a versatile, high-performance ground station designed for unmanned equipment such as drones, vehicles, and boats. It features a Qualcomm 6nm processor with Android 13, enabling smooth operations, app compatibility, and wide customization. With dual-frequency transmission (2.4G/5.8G) and a maximum communication range of 40KM using a directional flat antenna, the G12 system excels in reliability and efficiency.
The G12 Remote Control System is a versatile, high-performance ground station designed for unmanned equipment such as drones, vehicles, and boats. It features a Qualcomm 6nm processor with Android 13, enabling smooth operations, app compatibility, and wide customization. With dual-frequency transmission (2.4G/5.8G) and a maximum communication range of 40KM using a directional flat antenna, the G12 system excels in reliability and efficiency.
Description
Overview
The G12 Remote Control System is a versatile, high-performance ground station designed for unmanned equipment such as drones, vehicles, and boats. It features a Qualcomm 6nm processor with Android 13, enabling smooth operations, app compatibility, and wide customization. With dual-frequency transmission (2.4G/5.8G) and a maximum communication range of 40KM using a directional flat antenna, the G12 system excels in reliability and efficiency.
Product Features
- High-Performance Processor:
Qualcomm 6nm processor running Android 13 (64-bit) for smooth operation and app compatibility. - Dual-Frequency Wireless Communication:
Supports 2.4G/5.8G frequencies with high power and bandwidth.
Features automatic frequency hopping and dynamic adjustment for stability.
Transmission range: up to 20KM (standard); 40KM with directional antenna. - Rich Interfaces:
Offers multiple connectivity options: SIM card port, USB, Type-C, serial port, and more.
Includes an SDK development kit for advanced customization. - High-Resolution Display:
5.5-inch screen with 1920×1080 resolution, maintaining clear visibility in direct sunlight. - Long Battery Life:
High-density lithium-ion battery provides 4–8 hours of continuous operation. - Rugged Design for Harsh Environments:
Operating temperature range: -10°C to 55°C. Built to withstand demanding environments. - Video Transmission & Support:
Capable of real-time video transmission (camera optional) and compatible with mainstream flight control systems.
Detailed Technical Parameters
G12 Remote Controller
| Category | Specifications |
|---|---|
| Display | 5.5-inch high-brightness screen |
| Resolution | 1920×1080 |
| Processor | Qualcomm 6nm processor |
| OS | Android 13 |
| Size | 194.3mm(L) × 282.2mm(W) × 94.9mm(H) |
| Weight | 683g |
| Battery | 10000mAh |
| Battery Life | 4–8 hours |
| Operating Memory | 4GB |
| Storage | 64GB |
| Frequency Band | 2.4G/5.8G |
| Channels | 12 |
| Remote Control Distance | 5–20KM (ground-to-air, visual) |
| Charging Interface | Type-C |
| External Interfaces | Serial port, USB port, SIM card slot, Type-C |
| Operating Temperature | -10°C to 55°C |
G12 RX Receiver
| Category | Specifications |
|---|---|
| Frequency Band | 2.4G/5.8G |
| Serial Baud Rate | 57600/115200/921600 |
| Supply Voltage | 5V±5% |
| Operating Current | 5V/2A |
| Data Transmission Ports | 1 channel, 200Kbps–160Mbps |
| Network Port | 1 channel |
| SBUS Output | 1 channel |
| Dimensions | 51mm(L) × 40.8mm(W) × 23.3mm(H) |
| Weight | 45g |
| Operating Temperature | -10°C to 55°C |
Application Scenarios
- Unmanned Aerial Vehicles (UAVs): Video and data transmission for drones, including helicopters, fixed-wing, and multi-rotors.
- Unmanned Ground Vehicles (UGVs): Remote control and data handling for vehicles operating in industrial or rugged environments.
- Boats and Maritime Operations: Ensures reliable long-distance data transmission and control for marine equipment.
- Surveillance and Security: Real-time video and control capabilities for security applications and monitoring systems.
- Industrial Use Cases: Integrates with various devices for remote operations in mining, construction, and agriculture.
Additional information
| Performance parameters | G12 Remote Control System |
|---|
