D600 drone: 20KM image transmission, 90 minute endurance, reshaping aerial operation experience
D600 drone: 20KM image transmission, 90 minute endurance, reshaping aerial operation experience

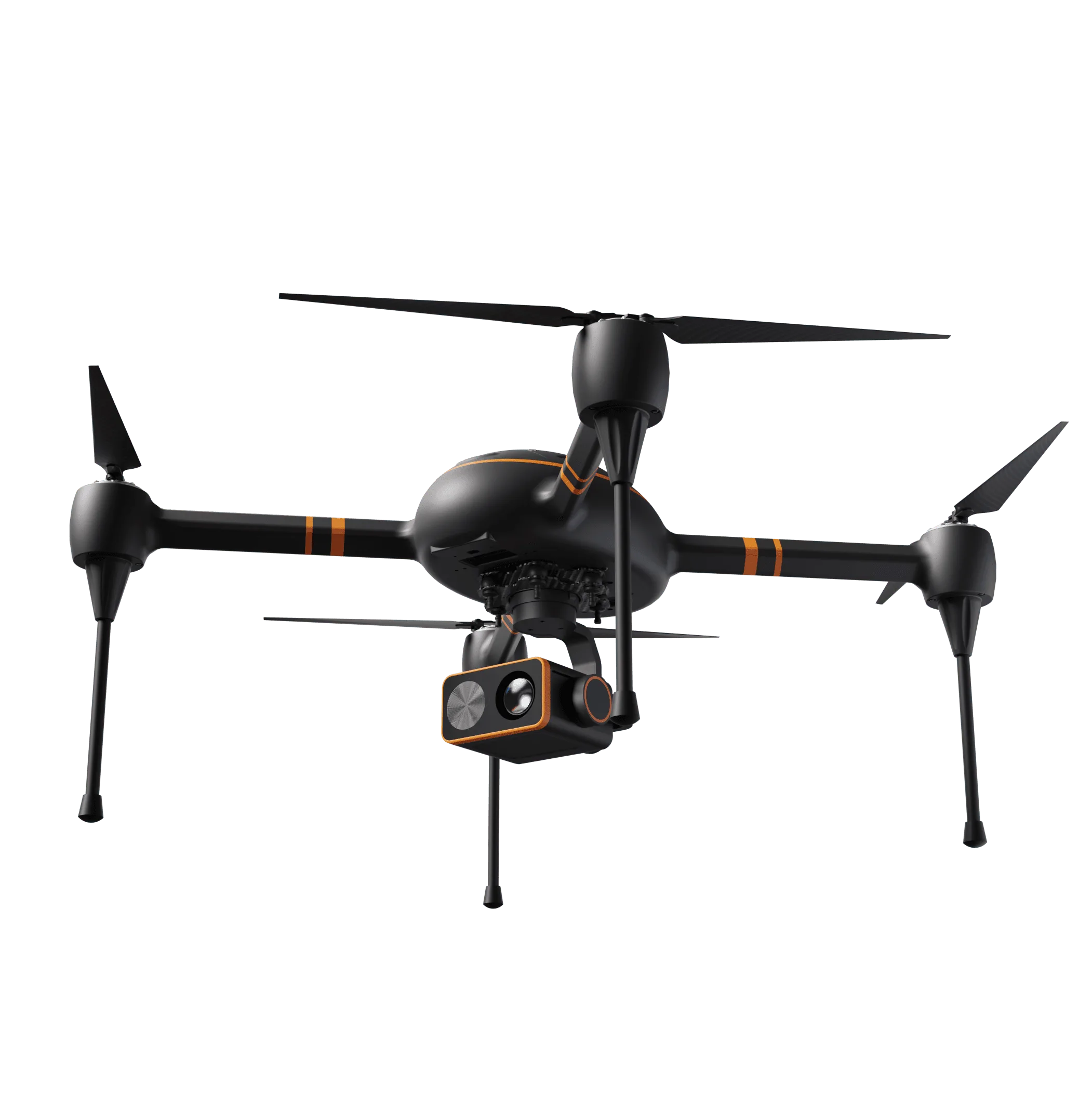

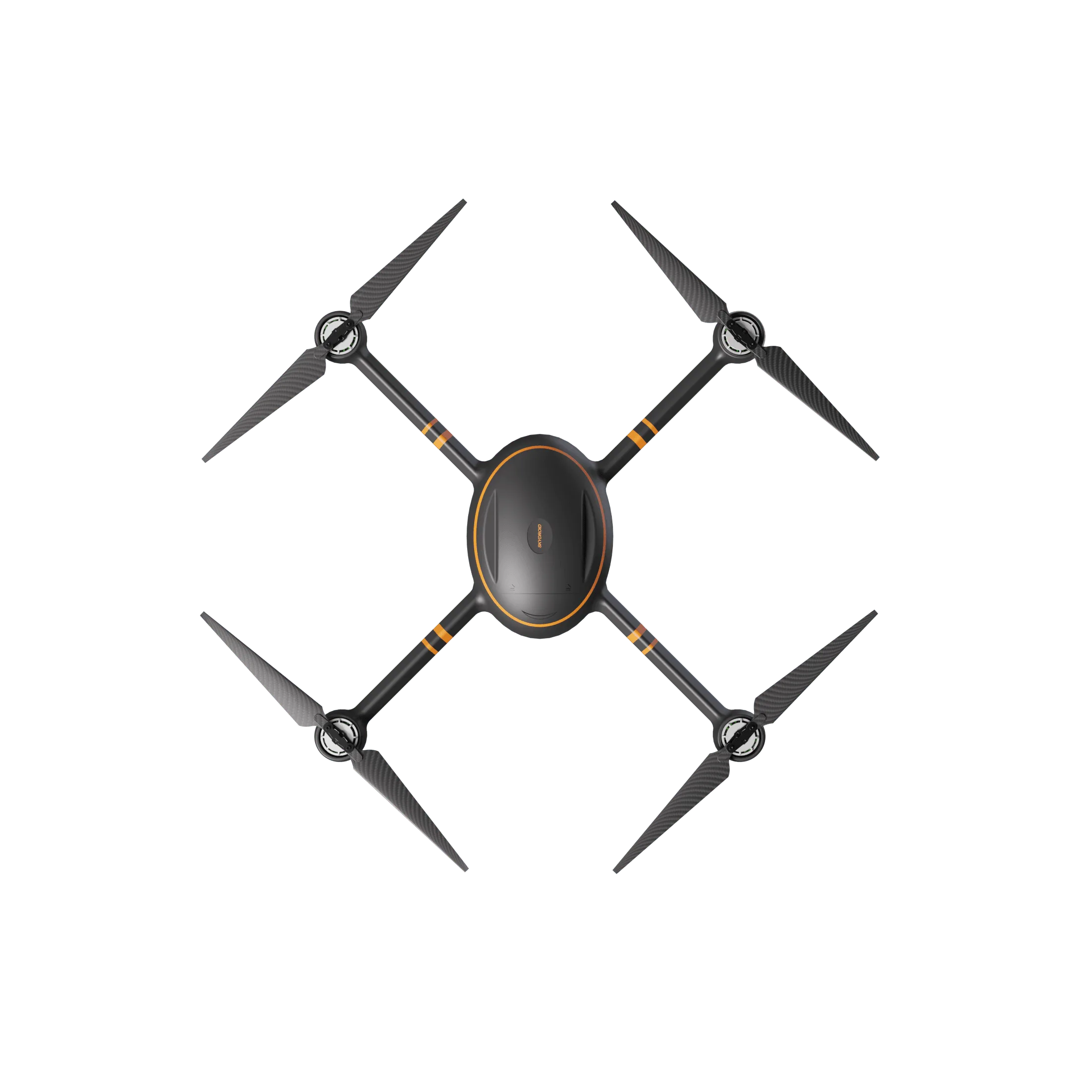

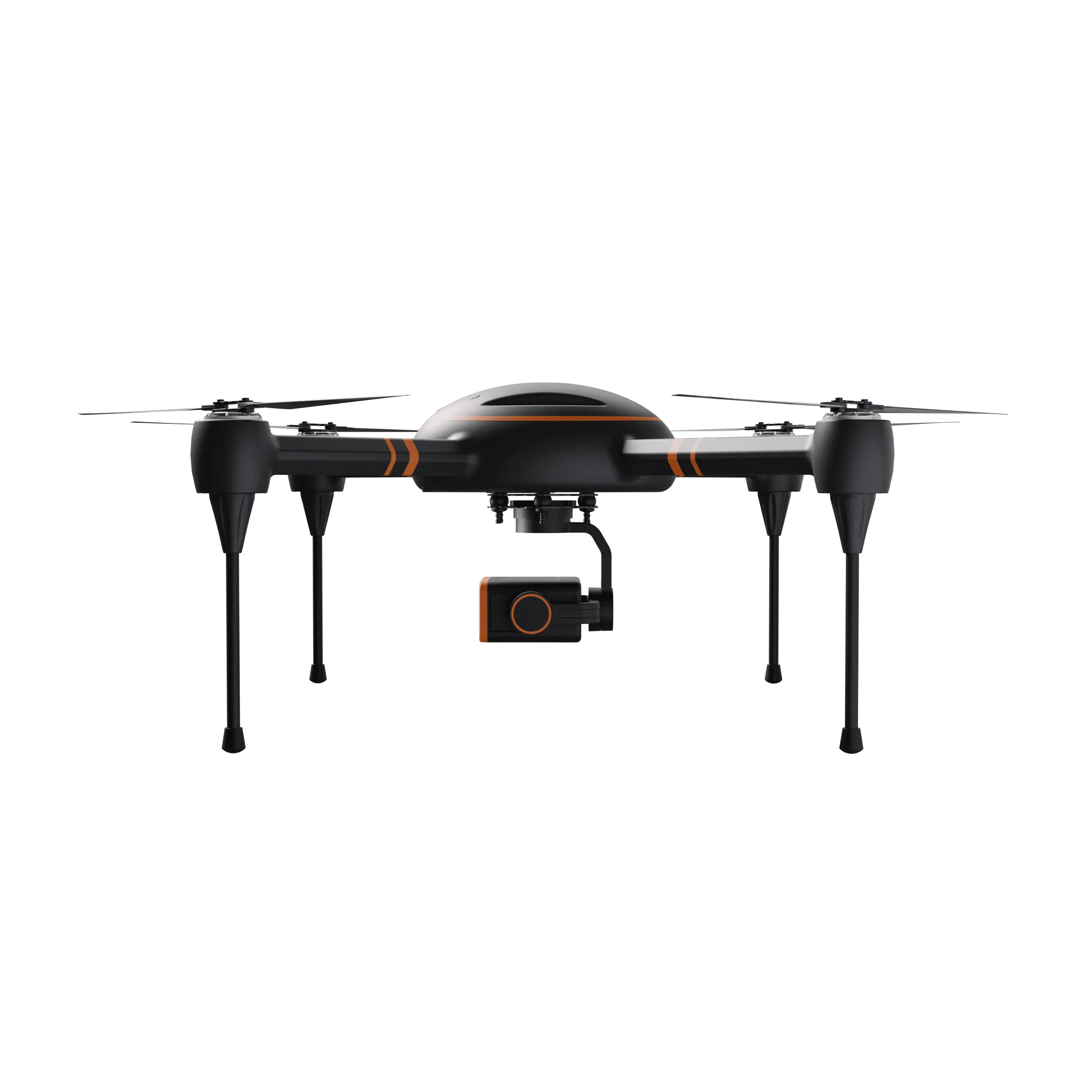

The D600 is a versatile flight platform designed for various applications, providing enhanced feasibility for aerial operations. The D600 features a compact design, full carbon fiber integration, a small 680mm wheelbase, and up to 90 minutes of flight time (without payload), making it a tailor-made solution for professional applications across multiple industries.
The D600 is a versatile flight platform designed for various applications, providing enhanced feasibility for aerial operations. The D600 features a compact design, full carbon fiber integration, a small 680mm wheelbase, and up to 90 minutes of flight time (without payload), making it a tailor-made solution for professional applications across multiple industries.
Description
1. Overview
The D600 is a versatile flight platform designed for various applications, providing enhanced feasibility for aerial operations. The D600 features a compact design, full carbon fiber integration, a small 680mm wheelbase, and up to 90 minutes of flight time (without payload), making it a tailor-made solution for professional applications across multiple industries.
2. Product Features
- Open-source and open protocol
- 20KM video transmission distance
- 90 minutes of battery life (without payload)
- Long-range data link
- FPV view
- Exceptional scalability
- Payload options
- C10: 2K distortion-free, lightweight design, three-axis stabilization
- TQ10N: 10x optical zoom, three-axis stabilization, 2K photo and video storage
- C20: 23x optical zoom, three-axis stabilization, adjustable focus spotlight
- Advanced Ground Station Application
- Optimized interaction and map viewing functions
- Includes smart waypoint planning, autonomous operation, auto-follow, and one-click return home functions
- Smart control
- 20KM control range
- 2K video transmission, 4K/60fps using frequency hopping technology for stable transmission
- 7-inch, 1920×1200 IPS high-brightness screen, Android system
- Smart battery system
- High-energy lithium-ion battery
- Smart discharge and control system
3. Detailed Technical Parameters
D600 Specifications
| Model number | D600 |
| Axes | 4 |
| Symmetrical motor wheelbase | 680mm |
| Unfolded size | 980×980×255mm |
| Folding size | 544×544×255mm |
| Net weight | 1200g |
| Transport size | 630×620×340mm |
| Transport weight | 10KG |
| Recommended maximum take-off weight | 3.5KG |
| Hovering accuracy | Vertical ±0.8m, Horizontal ±2.5m |
| Max rudder speed | 200°/s |
| Propeller size | 17 inch |
| Maximum ascent speed | 3m/s |
| Maximum descent speed | 2.1m/s |
| Maximum wind speed | 10m/s |
| Hovering time (no payload) | 90mins |
| Power system | Motor 4008 + ESC 40A |
| Working temperature | -10℃ to 40℃ |
| Max flying speed | 55Km/h |
| Max endurance | 40KM |
| Max pitch angle | 20° |
Radio Controller Specifications
| Endurance | 6-20 hours |
| Relay function | YES |
| Low voltage alarm | YES |
| Transmitter power | 20DB@CE/23DB@FCC |
| PC parameter adjusting upgrade | YES |
| Receiving sensitivity | -120DBM |
| Battery | 20000mAh |
| Dust-free design | Joystick dust-free |
| Working current | 4.2V |
| Charging voltage | 9V |
| Charging port | TYPE-C |
| Channels | 16 |
| Size | 272×183×94mm |
| Model applications | Fixed wing, helicopter, glider, multi-rotor |
| Weight | 1034g |
| Storage capacity | 8G |
| Frequency | 2.400-2.483GHz |
| Language | Chinese |
| Joystick resolution | 4096 grade |
TQ10N Gimbal Specifications
| Output format | 2K 30FPS H.264 |
| Working current | 410mA |
| Lens focal length | 10x optical zoom |
| Control accuracy | ±0.02° |
| Input power | 35-65(12-26V) |
| Weight | 375g±10 |
| Rotation range | -60°~135° (Pitch) |
| Memory card | Max 128G |
Charger Specifications
| Input voltage | 220V |
| Balance current | 1A |
| Output voltage | 24V |
| Battery type | Lipo-6s |
| Charging current | 8A |
| Working temperature | 0℃ to 40℃ |
| Discharging current | 2A |
| Storage temperature | -20℃ to 60℃ |
| Max charging power | 100W |
| Size | 130×115×61mm |
| Max discharging power | 24W |
| Weight | 380g |
Battery Specifications
| Capacity | 12000mAh |
| Weight | 1166g |
| Voltage | 4.4*6V |
| Type | Lipo-6s |
| Plug type | XT60 |
| Working temperature | -10℃ to 40℃ |
4. Application Scenarios
- Security applications: Automated patrol and fixed-point monitoring for specific route areas with real-time monitoring and local video recording features.
- Broadcast system: Equipped with a high-decibel public address system for broadcasting over urban and regional areas.
- Industry applications: Suitable for industries such as power, fire fighting, and police, with custom devices for specific functions.
