D-RC 3060BL32 32Bit 60A 128K 4-IN-1 ESC
D-RC 3060BL32 32Bit 60A 128K 4-IN-1 ESC

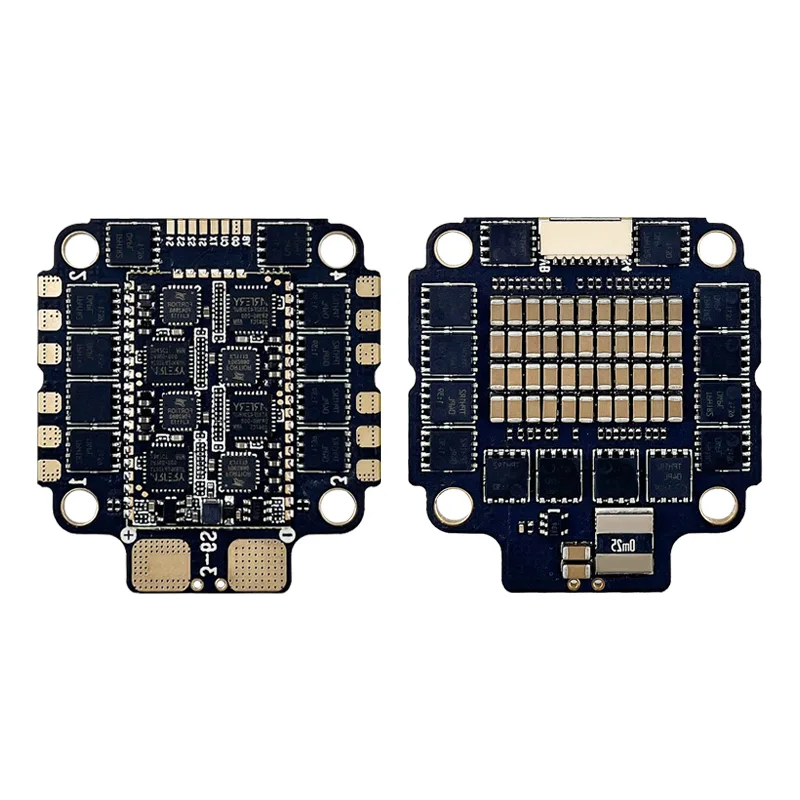

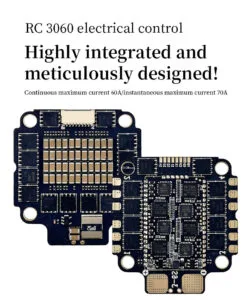

The D-RC 3060BL32 32Bit 60A 128K 4-IN-1 ESC is a powerful 4-in-1 ESC that delivers 60A continuous and 70A peak current for 3 to 6S LiPo batteries. It supports a wide range of ESC protocols, including Dshot 150/300/600/1200 and MultiShot, with ESC feedback and built-in ammeter functions. Equipped with a high-performance 32-bit processor, it is as light as 13.9 grams and has a compact size with M3 30.5×30.5mm mounting holes, making it ideal for high-performance UAVs.
The D-RC 3060BL32 32Bit 60A 128K 4-IN-1 ESC is a powerful 4-in-1 ESC that delivers 60A continuous and 70A peak current for 3 to 6S LiPo batteries. It supports a wide range of ESC protocols, including Dshot 150/300/600/1200 and MultiShot, with ESC feedback and built-in ammeter functions. Equipped with a high-performance 32-bit processor, it is as light as 13.9 grams and has a compact size with M3 30.5×30.5mm mounting holes, making it ideal for high-performance UAVs.
Description
D-RC 3060AM32 32Bit 60A 4-IN-1 ESC

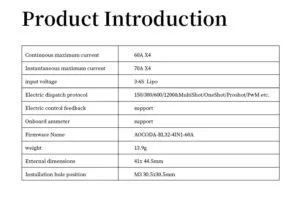

| Specification | Detail |
|---|---|
| Continuous Maximum Current | 60A X4 |
| Instantaneous Maximum Current | 70A X4 |
| Input Voltage | 3-6S Lipo |
| Electric Dispatch Protocol | Dshot 300/Dshot600/Bi-directional Dshot/PWM |
| Electric Control Feedback | Supported |
| Onboard Ammeter | Supported |
| Firmware Name | AM32_AT32PB4_540_F421_2.12.hex |

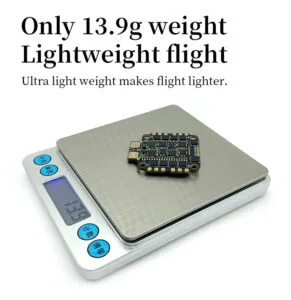

| Weight | 13.9g |

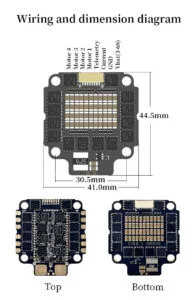

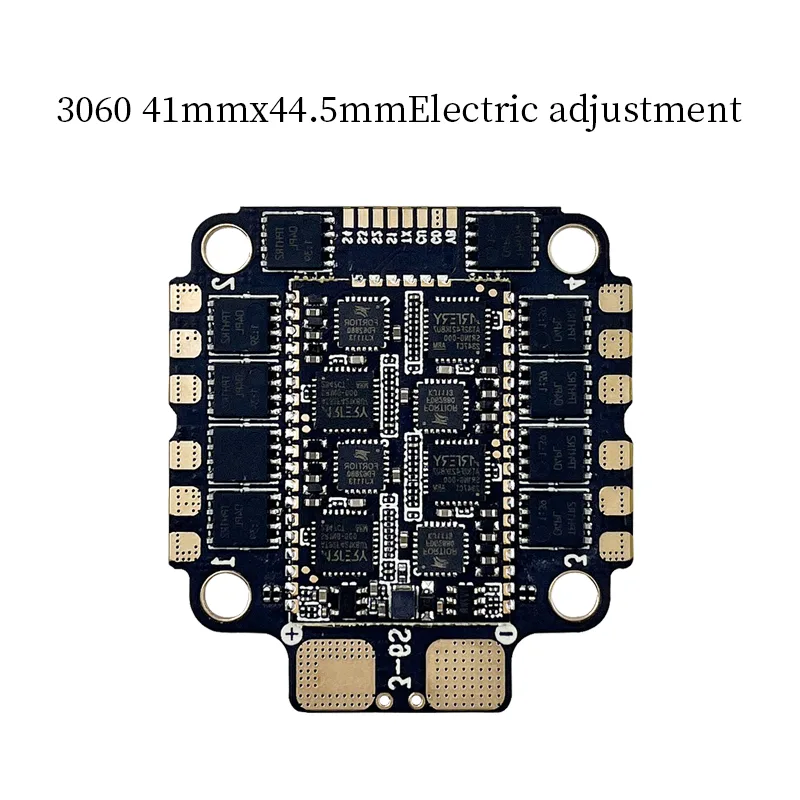

| External Dimensions | 41×44.5mm |
| Installation Hole Position | M3 30.5×30.5mm |
Additional information
| Performance parameters | parameters |
|---|
