D-H30 High-Performance Flagship Remote Controller
D-H30 High-Performance Flagship Remote Controller

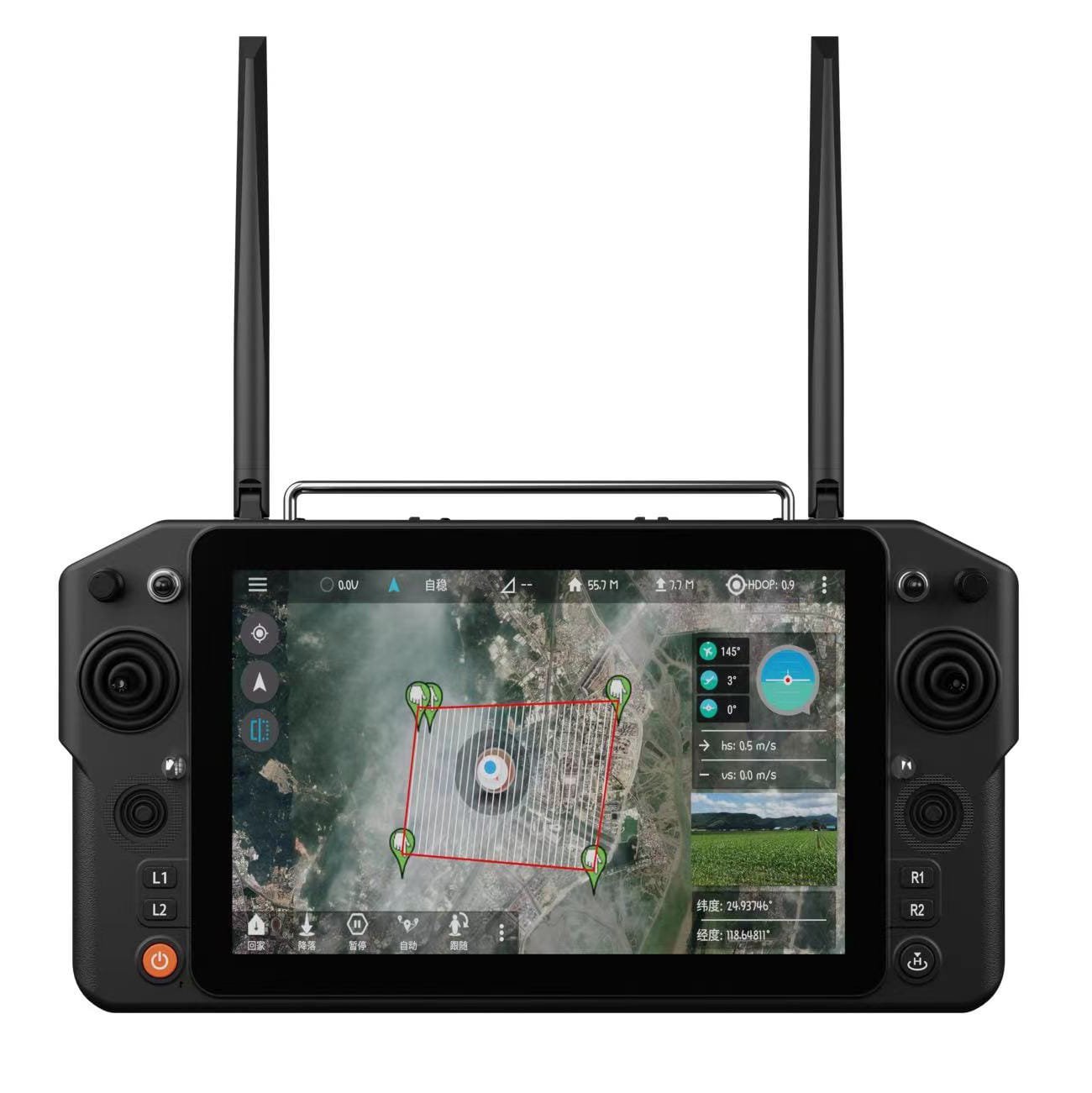

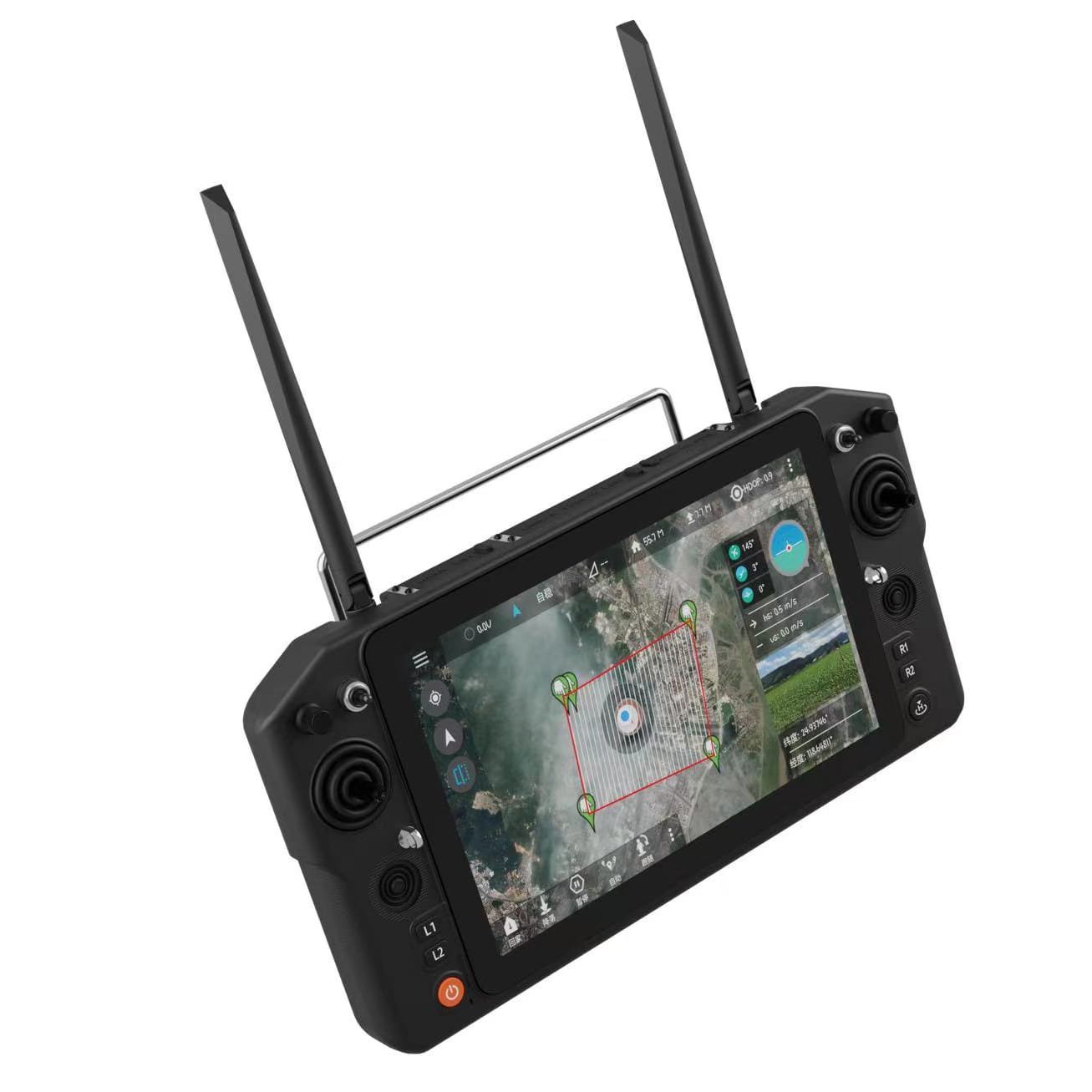

The D-H30 High-Performance Flagship Remote Controller is a cutting-edge device designed for long-range and high-precision drone operations. Featuring stable tri-band communication (1.4GHz/2.4GHz/800MHz), a 10.1-inch sunlight-readable touch screen, and a robust Qualcomm 660 processor, it delivers exceptional performance for industrial, surveillance, and emergency applications. With a 50KM maximum transmission range and rich interface options, the D-H30 is built to handle the most demanding scenarios with ease.
The D-H30 High-Performance Flagship Remote Controller is a cutting-edge device designed for long-range and high-precision drone operations. Featuring stable tri-band communication (1.4GHz/2.4GHz/800MHz), a 10.1-inch sunlight-readable touch screen, and a robust Qualcomm 660 processor, it delivers exceptional performance for industrial, surveillance, and emergency applications. With a 50KM maximum transmission range and rich interface options, the D-H30 is built to handle the most demanding scenarios with ease.
Description
Overview
The D-H30 High-Performance Flagship Remote Controller is a cutting-edge device designed for long-range and high-precision drone operations. Featuring stable tri-band communication (1.4GHz/2.4GHz/800MHz), a 10.1-inch sunlight-readable touch screen, and a robust Qualcomm 660 processor, it delivers exceptional performance for industrial, surveillance, and emergency applications. With a 50KM maximum transmission range and rich interface options, the D-H30 is built to handle the most demanding scenarios with ease.
Product Features
- Stable Tri-Band Communication:
Supports 1.4GHz/2.4GHz/800MHz for stable signal transmission with lower latency, extended range, and strong anti-interference. - Rich Interface Options:
Equipped with USB, LAN port, audio interface, HDMI, TF card slot, Type-C port, and 4G card slot, providing versatile connectivity. - HD Large Screen:
Features a 10.1-inch industrial-grade sunlight-readable display with a resolution of 1920×1200. Capacitive multi-touch functionality ensures seamless operation, even outdoors. - Long-Range Transmission:
Advanced data link technology enables a remote control distance of 50KM, with a minimum range of 10KM. - High-Performance Platform:
Powered by a Qualcomm 660 processor and runs on Android 9.1, supporting smooth multitasking and 3D mapping. - Dust-Free & Rugged Design:
Dust-resistant, high-strength structure for use in harsh environments. - Large-Capacity Battery:
Built-in 20000mAh battery provides 5 hours of continuous operation.
Detailed Technical Parameters
| Category | Specifications |
|---|---|
| Display | 10.1-inch industrial-grade touch screen + sunlight-readable screen |
| Resolution | 1920×1200 |
| Memory | 4GB |
| Storage | 64GB |
| Antenna | Dual antennas: 1.4GHz/2.4GHz/800MHz |
| Battery Capacity | 20000mAh |
| Working Frequency | 1.4GHz/2.4GHz/800MHz |
| Remote Control Range | >10KM (maximum: 50KM) |
| Protection Grade | IP65 |
| External Interfaces | USB×1, 4G card slot×1, LAN port×1, audio interface×1, HDMI×1, TF×1, Type-C×1 |
| Processor | Qualcomm 660 |
| Operating System | Android 9.1 |
| Operating Temperature | -10°C to 55°C |
| Dimensions | 346mm(L) × 196.5mm(W) × 89.4mm(H) |
| Weight | 2.24kg |
Application Scenarios
- Drone Long-Distance Control: Provides reliable control and video transmission over a range of up to 50KM.
- Industrial Applications: Suitable for harsh environments such as construction sites and mining operations.
- High-Altitude Monitoring: Ideal for precision aerial photography and real-time video streaming for large-scale projects.
- Emergency Response: Enables quick deployment and live video transmission for disaster relief and rescue operations.
- Agricultural Monitoring: Facilitates long-range agricultural data collection and farm mapping.
Additional information
| Performance parameters | D-H30 |
|---|
