D-F760S V2 Stacd F722 V2 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone
D-F760S V2 Stacd F722 V2 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone

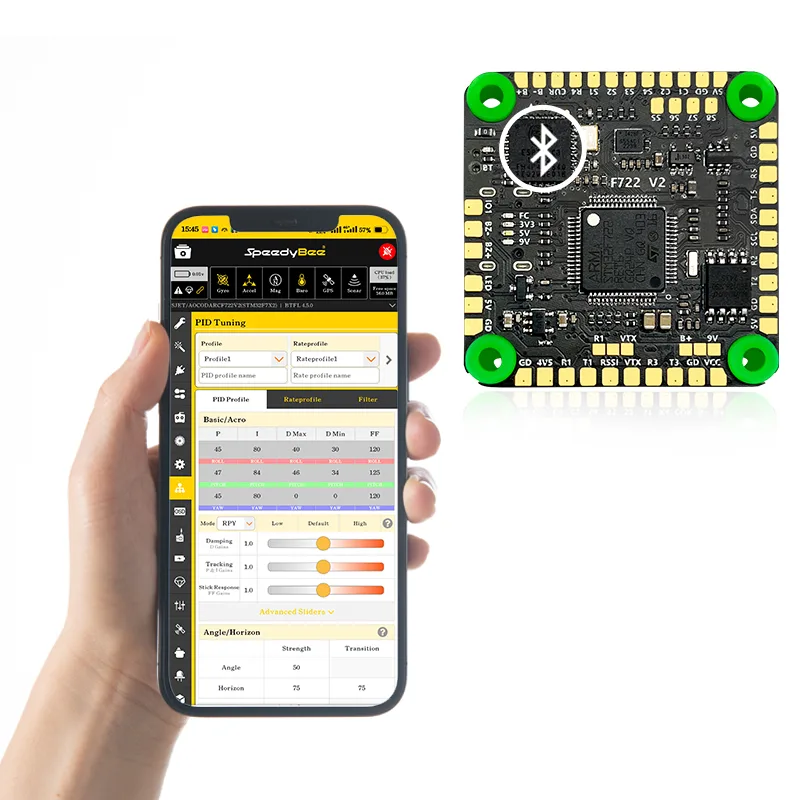

The D-F760S V2 Stacd F722 V2 3060AM32 60A 4in1ESC is a high-performance ESC and flight control system designed for FPV free flight UAVs. The portfolio consists of the 3060S ESC and the F722 V2 flight control, providing superior control performance and stability for professional flight enthusiasts and racing applications.
The D-F760S V2 Stacd F722 V2 3060AM32 60A 4in1ESC is a high-performance ESC and flight control system designed for FPV free flight UAVs. The portfolio consists of the 3060S ESC and the F722 V2 flight control, providing superior control performance and stability for professional flight enthusiasts and racing applications.
Description
D-F760S V2 Stacd F722 V2 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone Device Specifications
| F722 V2FC | |
|---|---|
| Cpu | STM32F722RET6 |
| Gyroscope | ICM42688P |
| Barometer | BMP280 |
| Black Box | 16MB |
| OSD | YES |
| Motor Output | 8ch |
| UART | 5ch |
| LED Strip | YES |
| Buzzer | YES |
| BEC Output | 4.5V/2A, 5V/2.5A, 9V/3A |
| Receiver | ELRS/CRSF/S.BUS/Frsky/Futabayfysky/TBs Crossfre/DSMX |

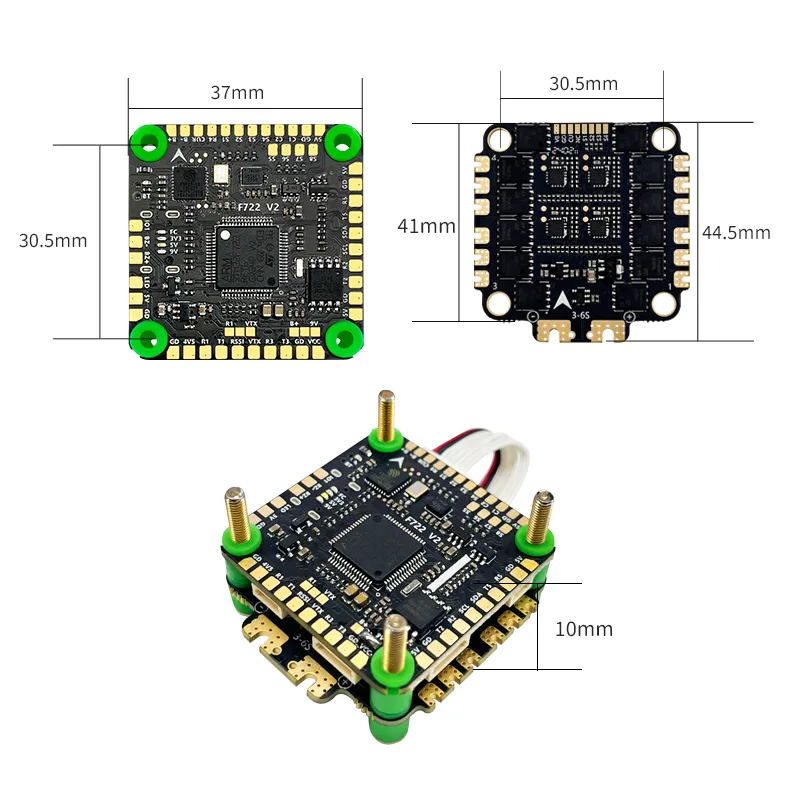

| Dimension | 37mm x 37mm |
| Weight | 8.8g |
| Mounting Hole | 30.5mm x 30.5mm |
| Firmware | RCF722V2 |
| 3060S ESC | |
|---|---|
| Continuous Current | 60A x 4 |
| Burst Peak Current | 70A x 4 |
| Input Signal | 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc. |
| Telemetry – Current Meter | No Support |
| Support – Current Meter | Yes |
| Input Voltage | 3-6S Lipo |
| Firmware Name | Bluejay H-H-50 |
| Mounting Hole | 40×40.7mm |
| Dimension | 330.5mm x 30.5mm |
| Weight | 10.4g |
Additional information
| Performance parameters | parameters |
|---|
