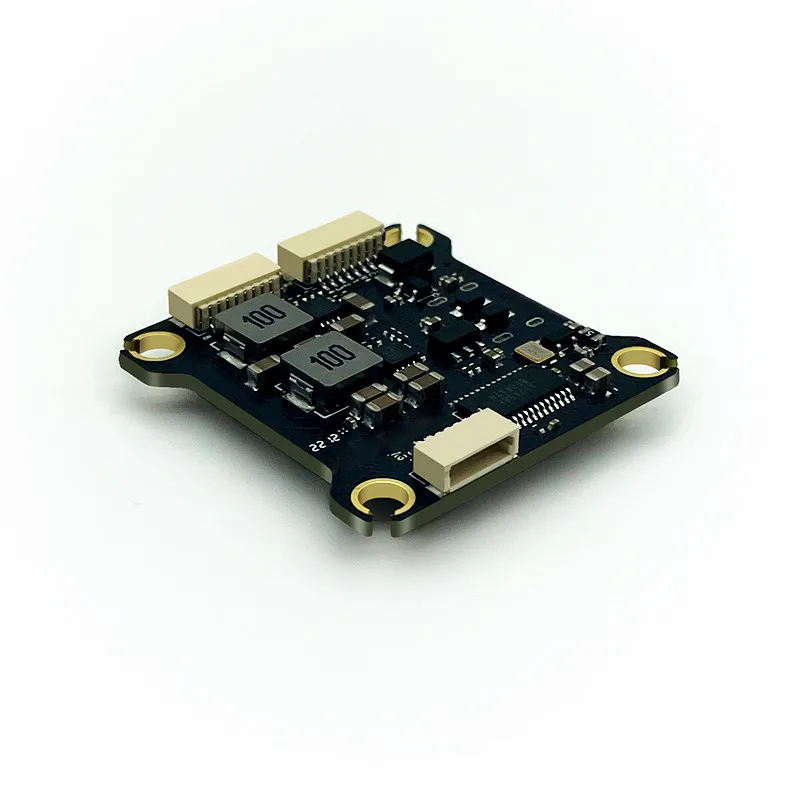

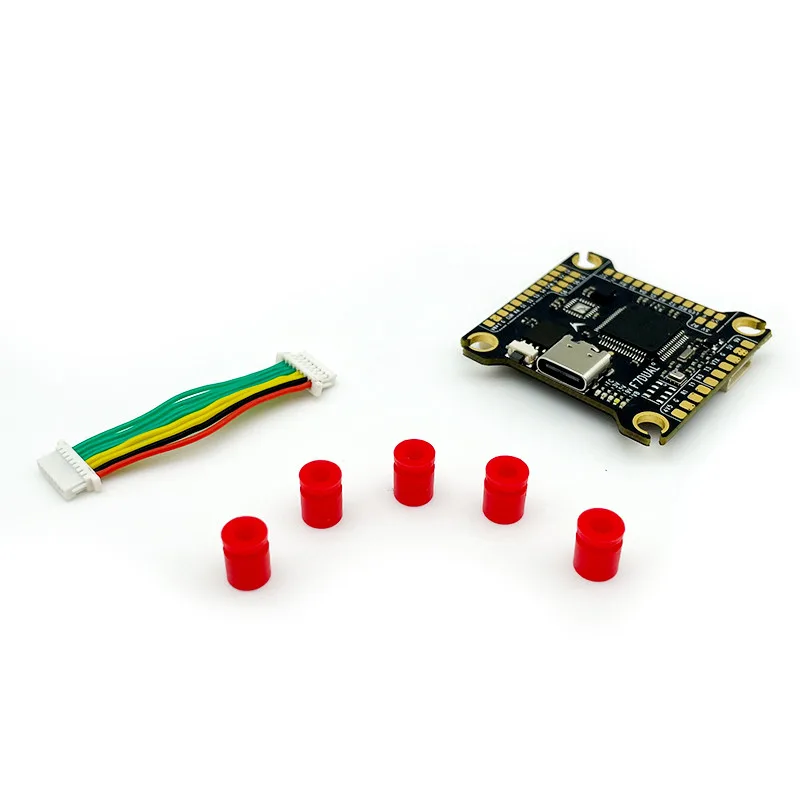

D-F722 V1 Flight Controller X8 MPU6000&BMI270 30.5mm for Racing Drone
D-F722 V1 Flight Controller X8 MPU6000&BMI270 30.5mm for Racing Drone
The D-F722 V1 Flight Controller is a lightweight, high-performance solution with advanced features like dual IMU support, 8-channel motor output, and 16MB BlackBox storage, designed for racing drones.
The D-F722 V1 Flight Controller is a lightweight, high-performance solution with advanced features like dual IMU support, 8-channel motor output, and 16MB BlackBox storage, designed for racing drones.
Description
D-RC F722 V1 Flight Controller X8 MPU6000 & BMI270 30.5mm for Racing Drone Device Specifications
| Component | Specifications |
|---|---|
| MCU | STM32F722RET6 |
| IMU | MPU6000 / BMI270 (Optional) |
| Barometer | BMP280, DPS310, MS5611 (Optional) |
| BlackBox | 16MB |
| Motor Output | 8CH motor output |
| UART | 5CH serial ports |
| Input Voltage | 12V-25.2V (3-6S Lipo) |
| BEC | 5V/2.5A, 9V/3A |
| Dimensions | 37mm x 37mm |

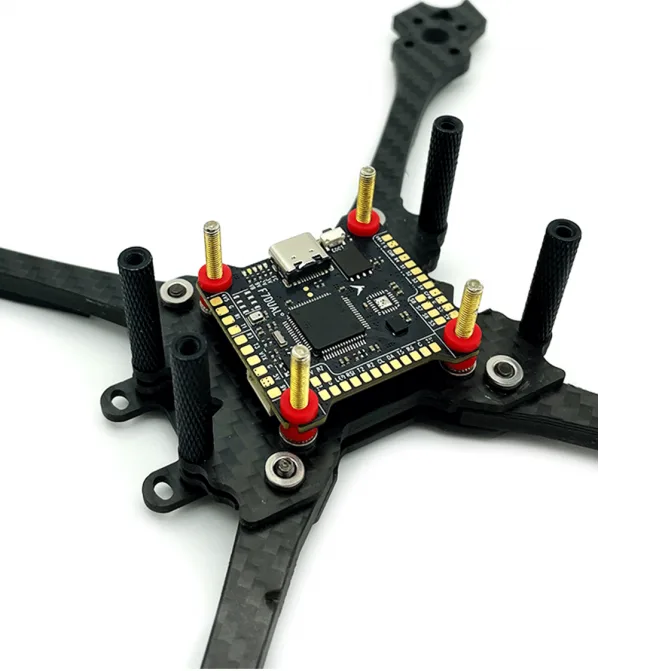

| Mounting Hole | 30.5mm x 30.5mm |
| Weight | 9.0g |

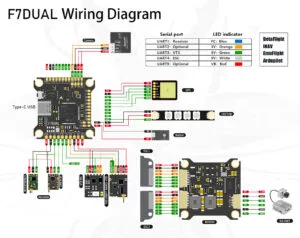

| Firmware | F7DUAL |
Additional information
| Performance parameters | parameters |
|---|
