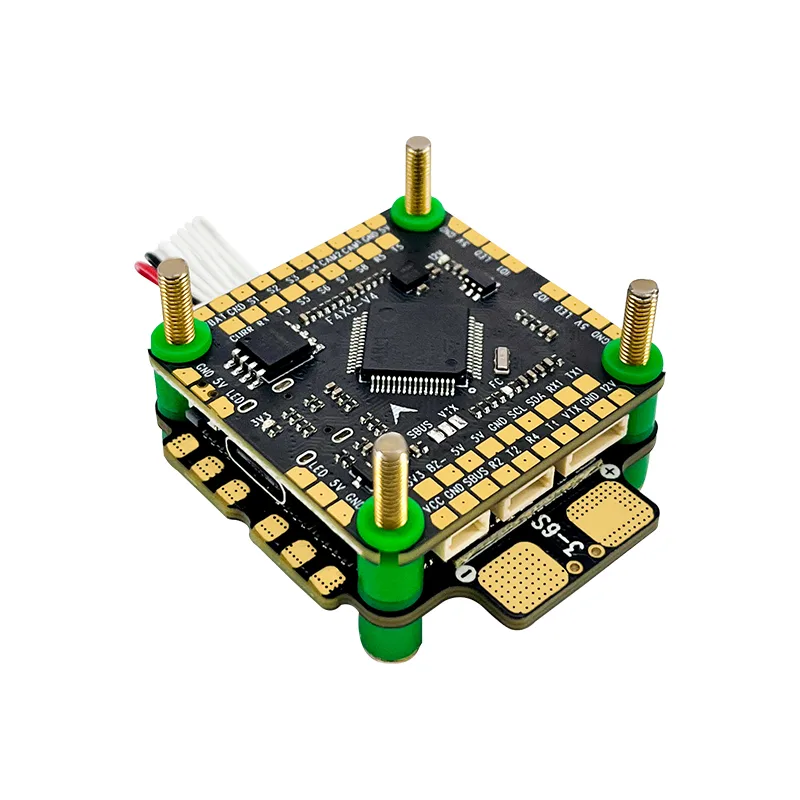

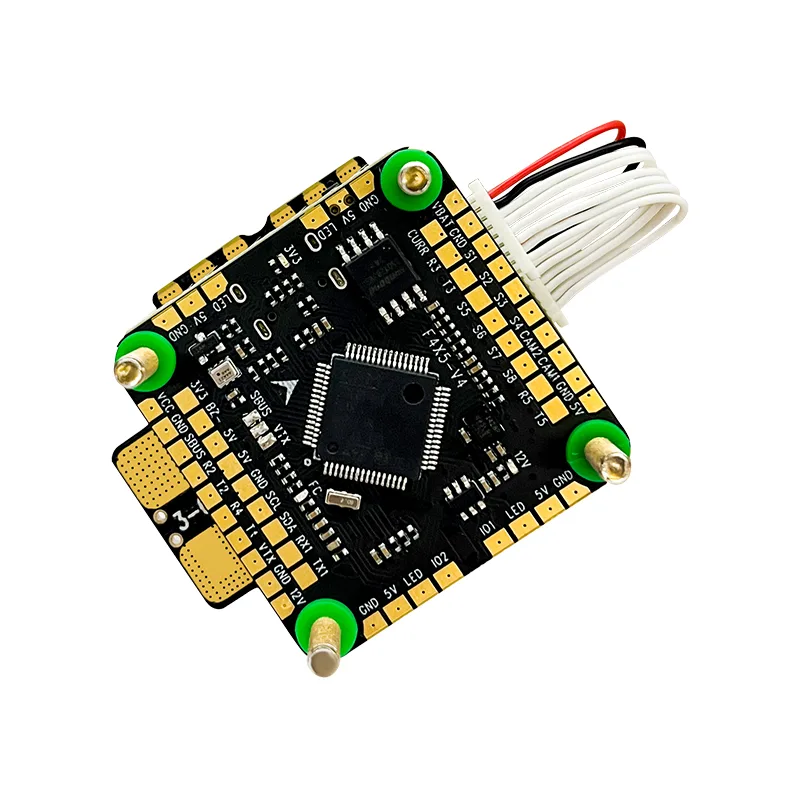

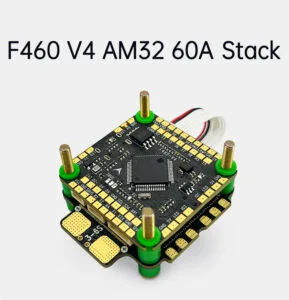

D-F460 V4 Stacd F405 V3 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone

D-F460 V4 Stacd F405 V3 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone

This product includes a high-performance flight controller (FC) and an ESC (Electronic Speed Controller) stack, designed specifically for FPV freestyle drones. With STM32F405RGT6 CPU and ICM42688P gyro, it provides stable performance and accurate flight control. It supports Betaflight, multiple receiver types (ELRS, Frsky, Crossfire), and dual camera inputs, making it ideal for both analog and DJI O3 digital systems. The ESC has AM32 firmware and can handle up to 60A continuous current, supporting up to 6S LiPo batteries.

This product includes a high-performance flight controller (FC) and an ESC (Electronic Speed Controller) stack, designed specifically for FPV freestyle drones. With STM32F405RGT6 CPU and ICM42688P gyro, it provides stable performance and accurate flight control. It supports Betaflight, multiple receiver types (ELRS, Frsky, Crossfire), and dual camera inputs, making it ideal for both analog and DJI O3 digital systems. The ESC has AM32 firmware and can handle up to 60A continuous current, supporting up to 6S LiPo batteries.

SKU: D-F460-V4

Description

D-F460 V4 Stacd F405 V3 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone

D-F460 V4 Stacd F405 V3 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone

D-F460 V4 Stacd F405 V3 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone

D-F460 V4 Stacd F405 V3 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone

D-F460 V4 Stacd F405 V3 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone

D-F460 V4 Stacd F405 V3 3060AM32 60A 4in1ESC 30x30mm 3-6S for FPV Freestyle Drone

F405 V4 FC Device Specifications

Receiver ELRS/CRSF/S.BUS/Frsky/Futabayfysky/TBS Crossfire/DSMX
USB Connector Type-C
DJI 03 YES
Camera Switch YES
Sbus and VTX jumper YES

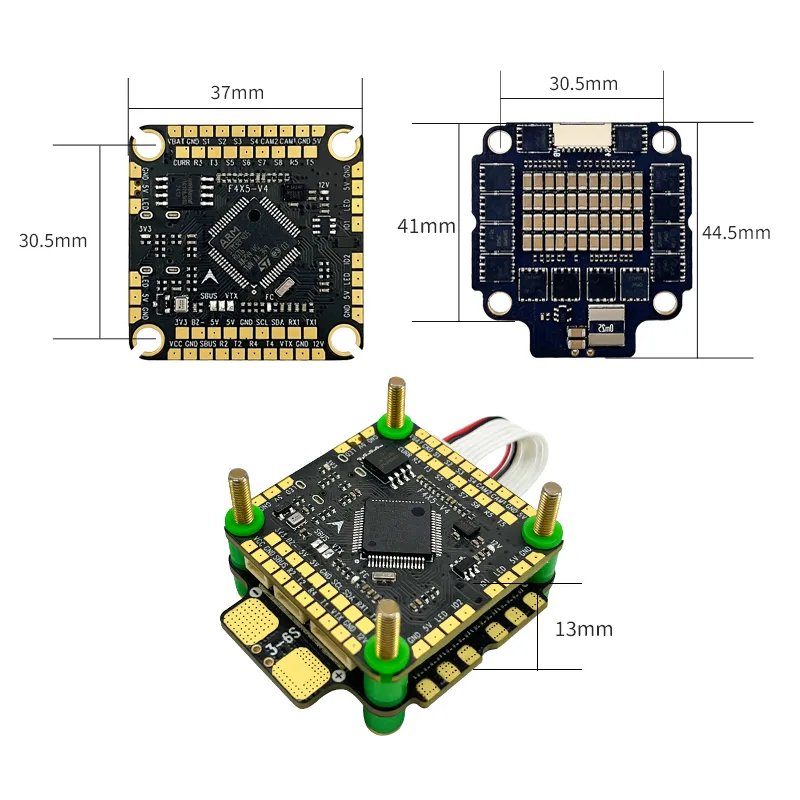

Dimension 36mmx36mm
Weight 9.4g
Mounting Hole 30.5mmx30.5mm
Firmware RCF405V4

Bettle 3060 ESC Product Parameters

Continuous Current 60A X4
Burst Peak Current 70A X4
Input Signal Dshot300/Dshot600/PWM/Bi-directional Dshot
Telemetry Support
Current Meter Support
Input Voltage 3-6S Lipo
Firmware Name AM32_AT421A
Working Temperature 20℃~+85℃
Working Humidity 20~95%
Storage Temperature 20°CC~+70°CC
Weight 13.9g
Mounting Hole M3 30.5mmx30.5mm
Dimension 41X44.5mm
