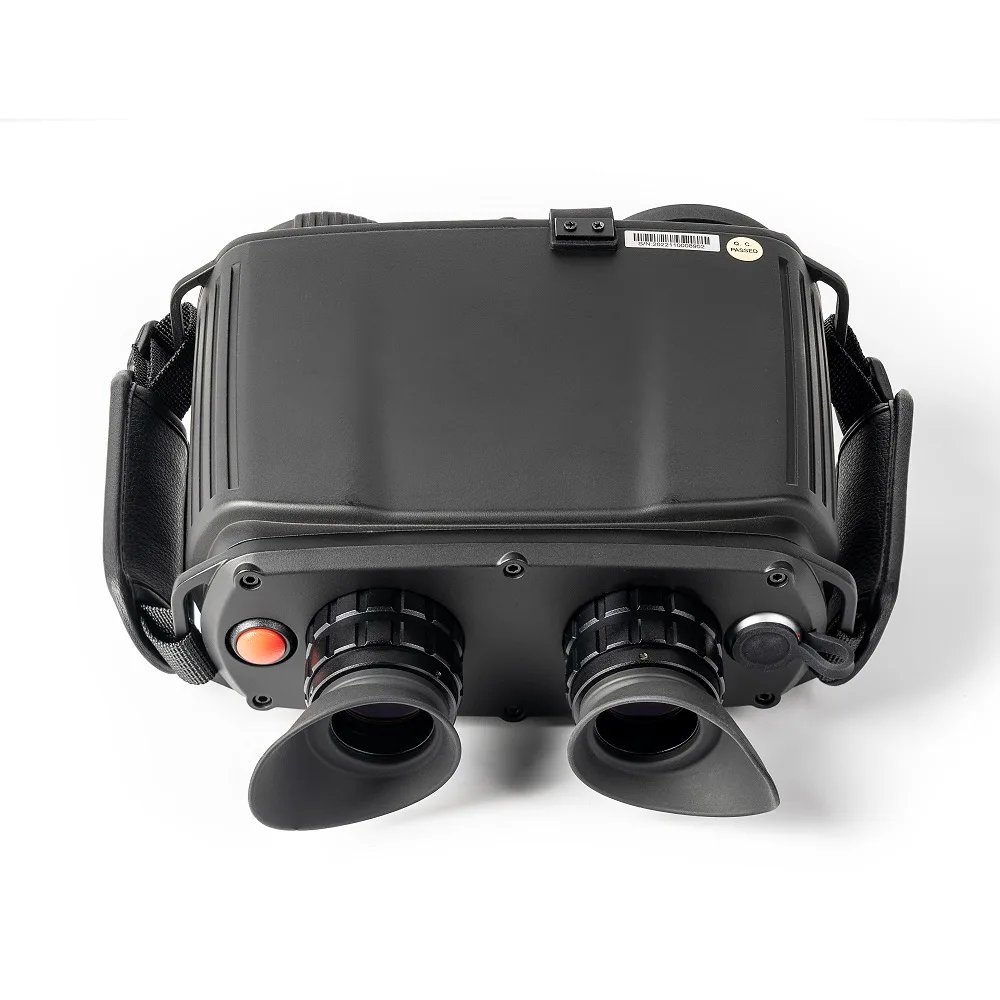

D-C600/D-C640 Binocular Thermal Imaging Telescope
D-C600/D-C640 Binocular Thermal Imaging Telescope
The D-C600/D-C640 Binocular Thermal Imaging Telescope is a high-performance thermal imaging device designed for long-range detection and identification. Equipped with a VOx detector and a 50mm lens, it provides clear thermal images with a resolution of either 384×288 (D-C600) or 640×512 (D-C640). The device features a wide range of display modes, including Infrared, Shimmer, and Dual Light Fusion, and offers 1x, 2x, and 4x magnification for versatile observation. With a detection range of up to 6250m for vehicles and 2361m for human targets, it is ideal for various professional applications. The OLED display, electric focus, and long battery life (up to 6 hours) ensure reliable and efficient operation in challenging conditions.
The D-C600/D-C640 Binocular Thermal Imaging Telescope is a high-performance thermal imaging device designed for long-range detection and identification. Equipped with a VOx detector and a 50mm lens, it provides clear thermal images with a resolution of either 384×288 (D-C600) or 640×512 (D-C640). The device features a wide range of display modes, including Infrared, Shimmer, and Dual Light Fusion, and offers 1x, 2x, and 4x magnification for versatile observation. With a detection range of up to 6250m for vehicles and 2361m for human targets, it is ideal for various professional applications. The OLED display, electric focus, and long battery life (up to 6 hours) ensure reliable and efficient operation in challenging conditions.
Description
Detector Specifications
Model | DC600 | DC640 | DC680 | DC690 |
---|---|---|---|---|
Detector type | VOx | |||
Infrared image resolution | 384×288 | 640×512 | 384×288 | 640×512 |
Pixel spacing | 12µm | |||
Field angle | 5.3°×4° | 8.8°×7.0° | 5.3°×4° | 8.8°×7.0° |
Range | 10m-2500m | |||
Wavelength coverage | 8µm~14µm | |||
Focal length | 50mm | |||
NETD | ≤50mK@25°C, F/1.0 | |||
Frame rate | ≤50Hz | |||
Focus mode | Electric focus | |||
Display resolution | 1024×768 | |||
Display screen type | 0.39 Inch OLED | |||
Display screen mode | Infrared / Shimmer / Dual light fusion / Picture in pictures | |||
Magnification | 1× / 2× / 4× | |||
Color Palette | White hot, Black hot, Rainbow, Iron red, Cold color | |||
WIFI | 2.4G image transmission | |||
Battery type | 2000mAh×4 rechargeable lithium battery | 3200mAh×2 rechargeable lithium battery | ||
Battery working time | ≥ 6 hours | ≥ 4 hours | ||
Working temperature | -20°C~+50°C | |||
Storage temperature | -30°C~+70°C | |||
Product size | 193.1×176.8×99mm | 192.8×86.9×189.6mm | ||
Product weight | 1.65kg |
Specification
Lens | DC600 | DC640 | DC680 | DC690 | |
---|---|---|---|---|---|
Detection distance | Human 1.7m×0.5m×0.3m 2361m | 2361m | 2361m | 2361m | 2361m |
Vehicle 4.5m×2.0m×1.5m 6250m | 6250m | 6250m | 6250m | 6250m | |
Identification distance | Human 1.7m×0.5m×0.3m 590m | 590m | 590m | 590m | 590m |
Vehicle 4.5m×2.0m×1.5m 1563m | 1563m | 1563m | 1563m | 1563m |
Additional information
Model | D-C600, D-C640 |
---|
