D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

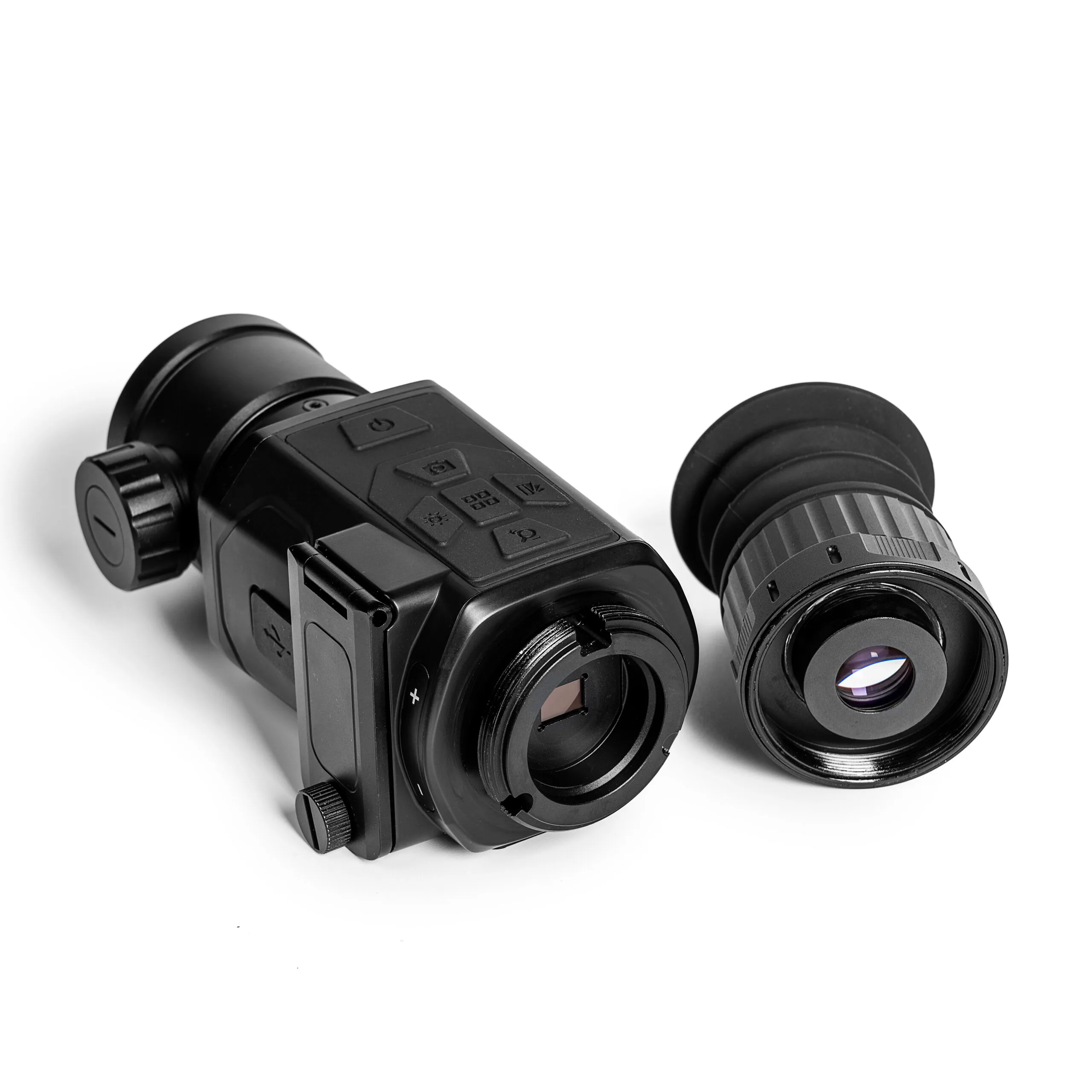

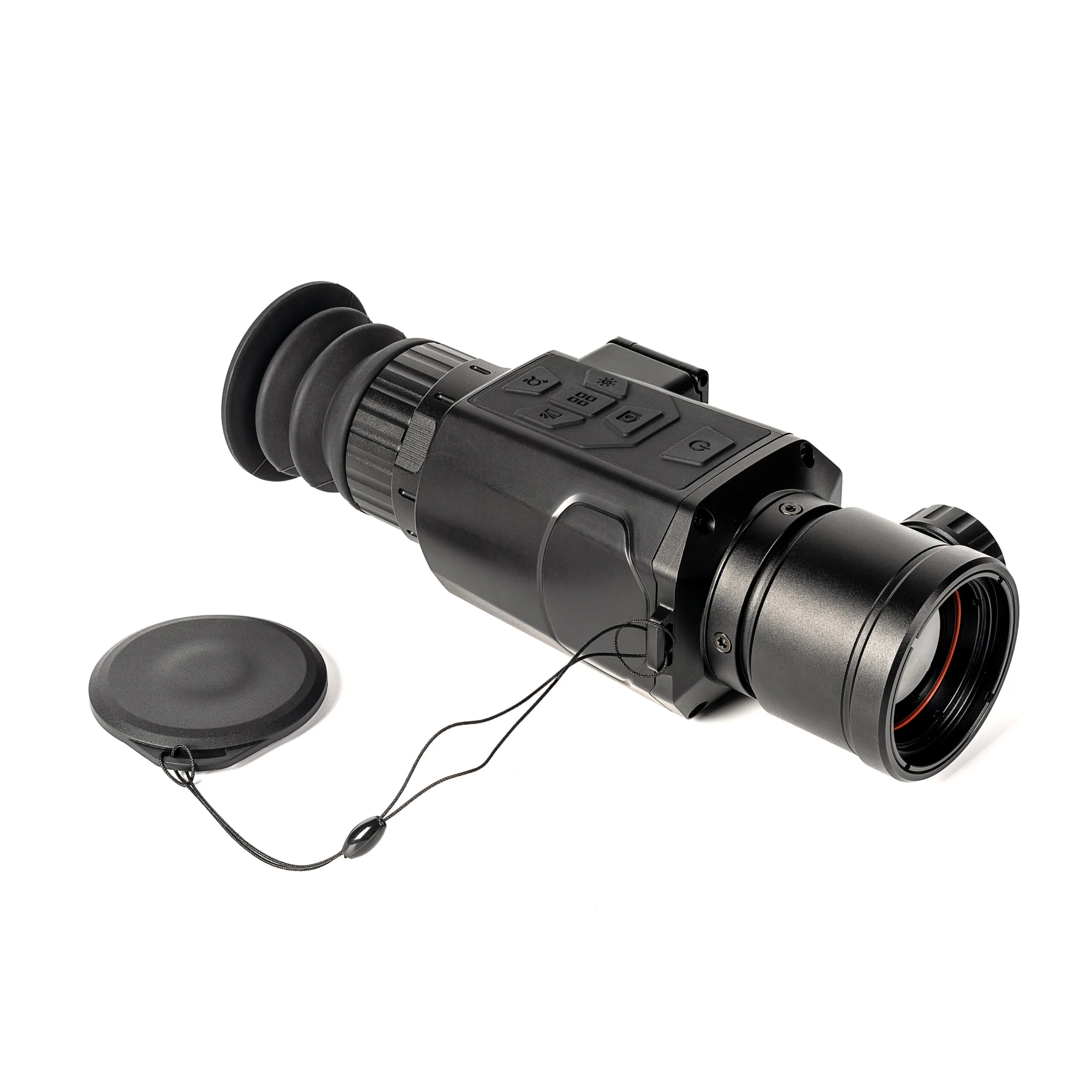

D-C18/D-C19 Outdoor Thermographic Telescope is a high-performance thermal imaging device designed for outdoor use. Equipped with advanced VOx detector technology, it provides clear infrared images at resolutions of 384×288 (D-C18) and 640×512 (D-C19). With multiple lens options (25mm, 35mm, 54mm), it offers extensive detection and identification ranges for humans and vehicles in various environments. The device supports manual focusing, multiple color palettes, and features like hot spot tracking and picture-in-picture mode. Ideal for surveillance, search and rescue, and wildlife observation, this versatile thermographic telescope ensures reliable performance in challenging conditions.

D-C18/D-C19 Outdoor Thermographic Telescope is a high-performance thermal imaging device designed for outdoor use. Equipped with advanced VOx detector technology, it provides clear infrared images at resolutions of 384×288 (D-C18) and 640×512 (D-C19). With multiple lens options (25mm, 35mm, 54mm), it offers extensive detection and identification ranges for humans and vehicles in various environments. The device supports manual focusing, multiple color palettes, and features like hot spot tracking and picture-in-picture mode. Ideal for surveillance, search and rescue, and wildlife observation, this versatile thermographic telescope ensures reliable performance in challenging conditions.

SKU: D-C18/D-C19

Description

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

Model DC18 DC19
Detector type VOx VOx
Infrared image resolution 384×288 640×512
Pixel spacing 12μm 12μm
Infrared focal length 25mm; 35mm; 54mm
Wavelength coverage 8μm ~ 14μm
NETD ≤ 40mK@25°C, F/1.0
Frame rate ≤ 50Hz
Focusing mode Manual
Display screen type 0.39 inch OLED
Visible image resolution 1440 × 1080
Magnification 1× / 2× / 4× / 8×
Diopter adjustment ±5D
Hot point track Support
Picture in picture Support
Color palette White hot, Black hot, Fire hot, Rainbow, Iron red, Cold color
Language Simplified Chinese, Traditional Chinese, English, Russian, German
Image/Video format JPG/MP4
USB interface Type-C, Charging/export image and video
Battery type 18350 Detachable rechargeable lithium battery (1400mAh×2)
Impact ≤1000G
Product size 201×68×73mm
Product weight 605g
Specification
Lens 25mm 35mm 54mm
Detection distance Human (1.7mx0.5mx0.3m) 1181m 1653m 2550m
Cars (4.5mx2.0mx1.5m) 3125m 4375m 6750m
Identification distance Human (1.7mx0.5mx0.3m) 295m 413m 638m
Cars (4.5mx2.0mx1.5m) 781m 1094m 1688m

Additional information

Infrared focal length

35MM
