10-inch traversing drone
10-inch traversing drone

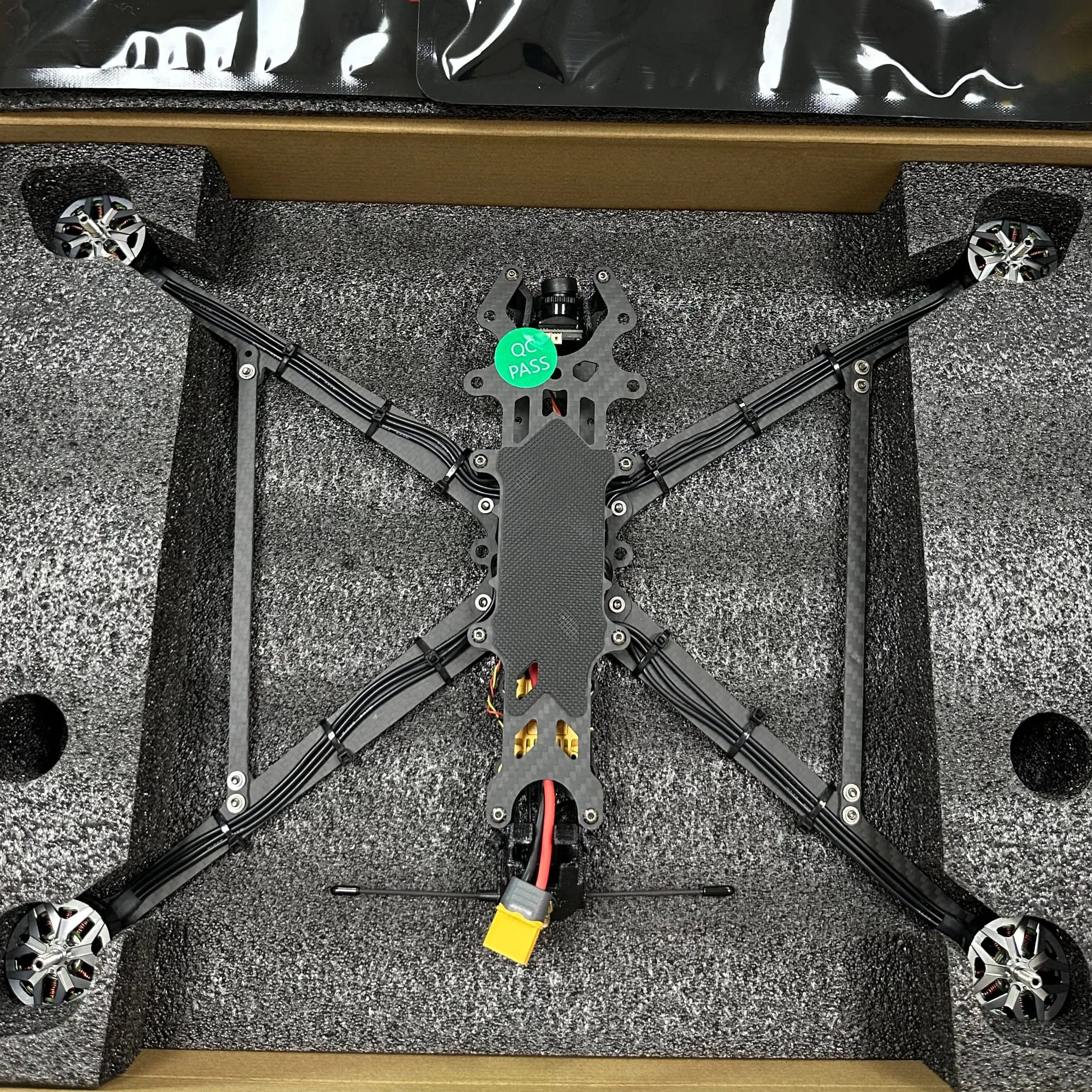

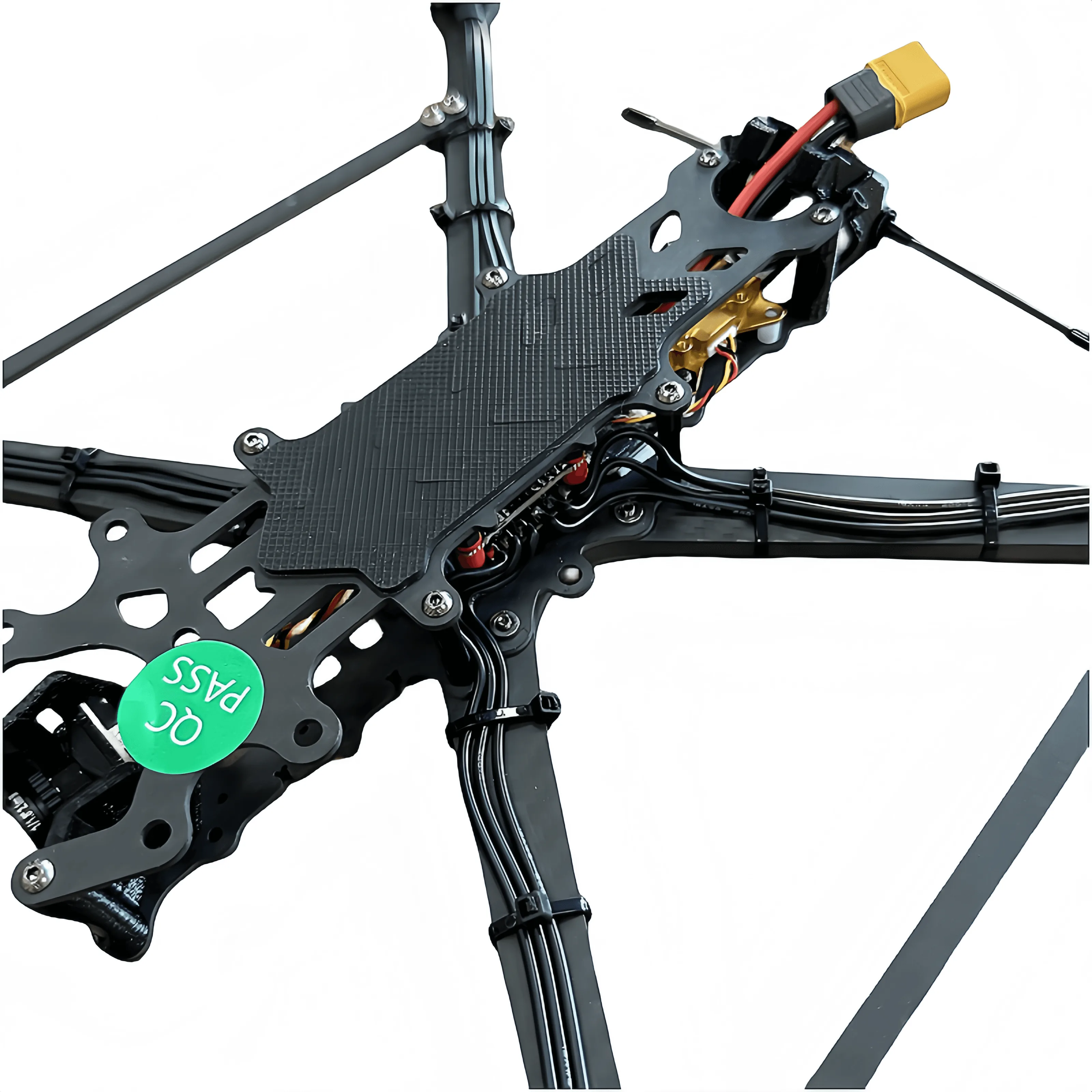

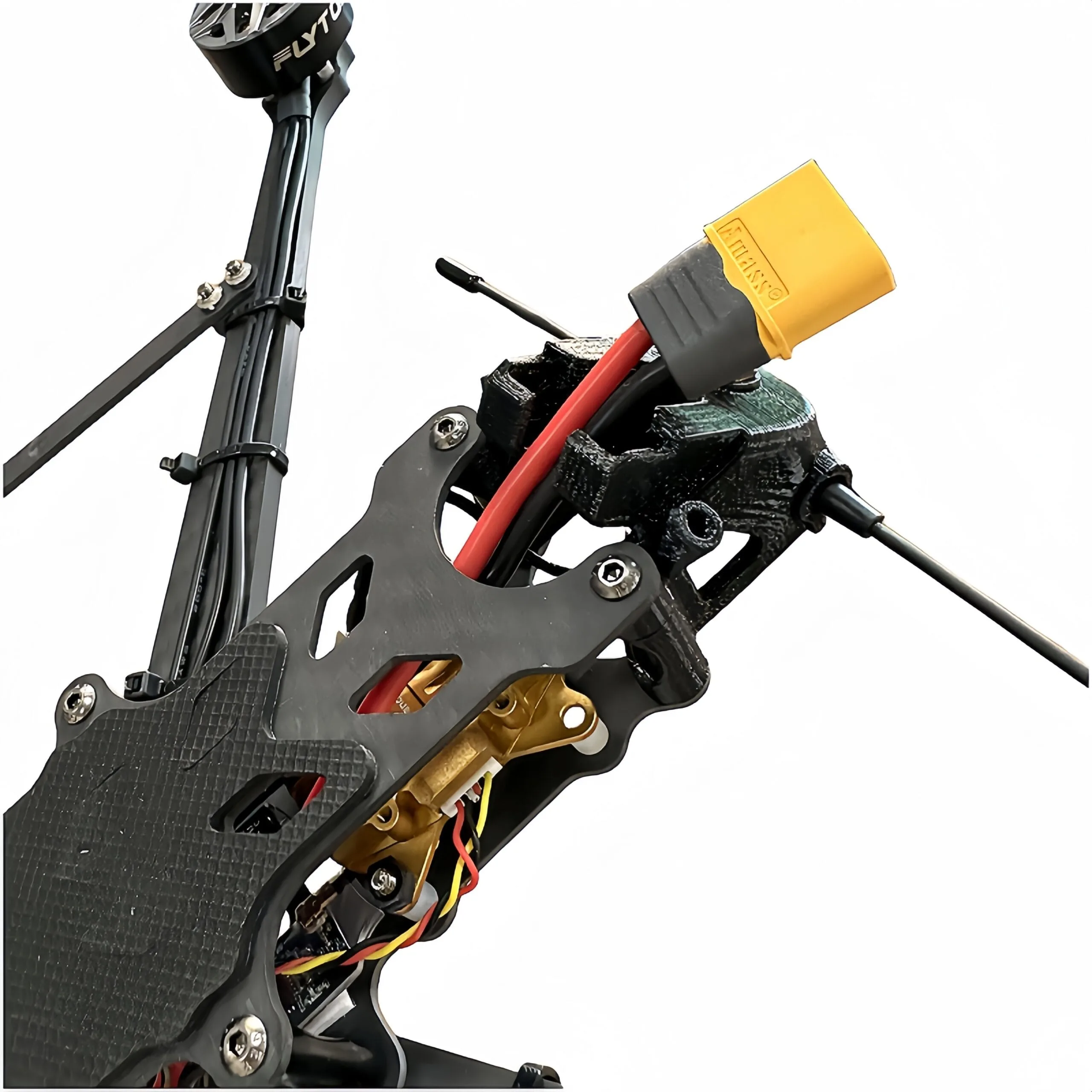

This 10-inch FPV drone is a rugged, high-performance quadcopter designed for long-range and high-speed flights. It features a HAKRC F405 V2 flight controller and HK3115 60A ESC with 3115 900kv motors and 10-inch Gemfan propellers for enhanced stability and control. It is equipped with a 2.5W video transmitter and a Caddx H1 camera that provides live video transmission over 15km. The drone’s 6S 9000mAh battery provides 21-30 minutes of flight time and can reach speeds of up to 150 kilometers per hour. It can carry a payload of 3-5 kilograms, making it ideal for heavy-duty FPV applications.
This 10-inch FPV drone is a rugged, high-performance quadcopter designed for long-range and high-speed flights. It features a HAKRC F405 V2 flight controller and HK3115 60A ESC with 3115 900kv motors and 10-inch Gemfan propellers for enhanced stability and control. It is equipped with a 2.5W video transmitter and a Caddx H1 camera that provides live video transmission over 15km. The drone’s 6S 9000mAh battery provides 21-30 minutes of flight time and can reach speeds of up to 150 kilometers per hour. It can carry a payload of 3-5 kilograms, making it ideal for heavy-duty FPV applications.
Description
Model |
MARK4 10-inch FPV |
Frame |
GEP-MK4-10 |
FC/ Flight Control |
HAKRC F405 V2 |
ESC/Electron Speed Control |
HK3115 60A |
MCU |
STM32F405RGT6 |
Gyroscope |
ICM-42688-P |
OSD/On Screen Display |
Betaflight OSD w/AT7456E chip |
VTX/Video Transmitter |
pandaRC 5.8G VTX 2.5W |
Camera |
Caddx H1 |
Antenna |
Momoda 5.8G RHCP SMA |
Motor |
CADDXFPV 3115 900kv |
Propeller |
Gemfan 1050-3 |
Weight |
1500g |
Receiver |
PNP/TBS NanoRX/GEPRC ELRS24/GEPRC ELRS |
Recommended battery |
Lipo 6S 9000mah |
Flight time |
21-30 minutes |
Flight speed |
120-150km/h |
Image transmission distance |
15km |
Flying distance |
15-20km |
Payload |
3-5kg |
Additional information
Performance parameters | parameters |
---|
