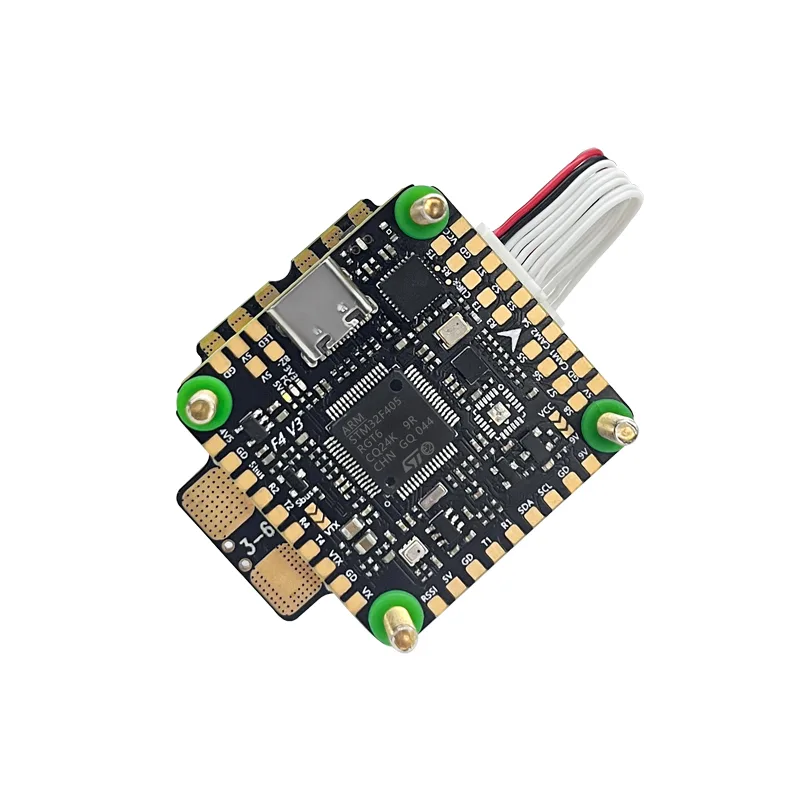

The F460 V3 AM32 60A Stack is a high-performance UAV flight control system featuring an STM32F405RGT6 processor, ICM42688P gyroscope, SPL06 barometer, OSD display, 16MB black box storage, 8-channel motor outputs, LED strips, buzzer, and multiple receiver protocol support. It also offers 5 UART serial ports, 5V/2.5A and 9V/3A BEC outputs, Type-C USB port, camera switching capability, and Sbus and VTX jumper switching. The system is lightweight, weighing only 9.6 grams, with a 3060 V1 ESC that supports 60A sustained and 70A peak current, compatibility with 3-6S Lipo batteries, and current sensing, making it ideal for FPV drone racing and freestyle flying.
The F460 V3 AM32 60A Stack is a high-performance UAV flight control system featuring an STM32F405RGT6 processor, ICM42688P gyroscope, SPL06 barometer, OSD display, 16MB black box storage, 8-channel motor outputs, LED strips, buzzer, and multiple receiver protocol support. It also offers 5 UART serial ports, 5V/2.5A and 9V/3A BEC outputs, Type-C USB port, camera switching capability, and Sbus and VTX jumper switching. The system is lightweight, weighing only 9.6 grams, with a 3060 V1 ESC that supports 60A sustained and 70A peak current, compatibility with 3-6S Lipo batteries, and current sensing, making it ideal for FPV drone racing and freestyle flying.
Description
F405 V3 FC Device Specifications
| CPU | STM32F405RGT6 |
|---|---|
| Gyro | ICM42688P |
| Barometer | SPL06 |
| OSD | YES |
| Black Box | 16MB or microSD |
| Motor Output | 8ch |
| LED Strip | YES |
| Buzzer | YES |
| Receiver Protocol | ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX |
| UART | 5ch |
| BEC Output | 5V/2.5A 9V/3A |
| USB Conector | Type-C |
| DJI 03 | YES |
| Camera Switch | YES |
| Sbus and VTX jumper | YES |
| 9V and VOC jumper switching | YES |

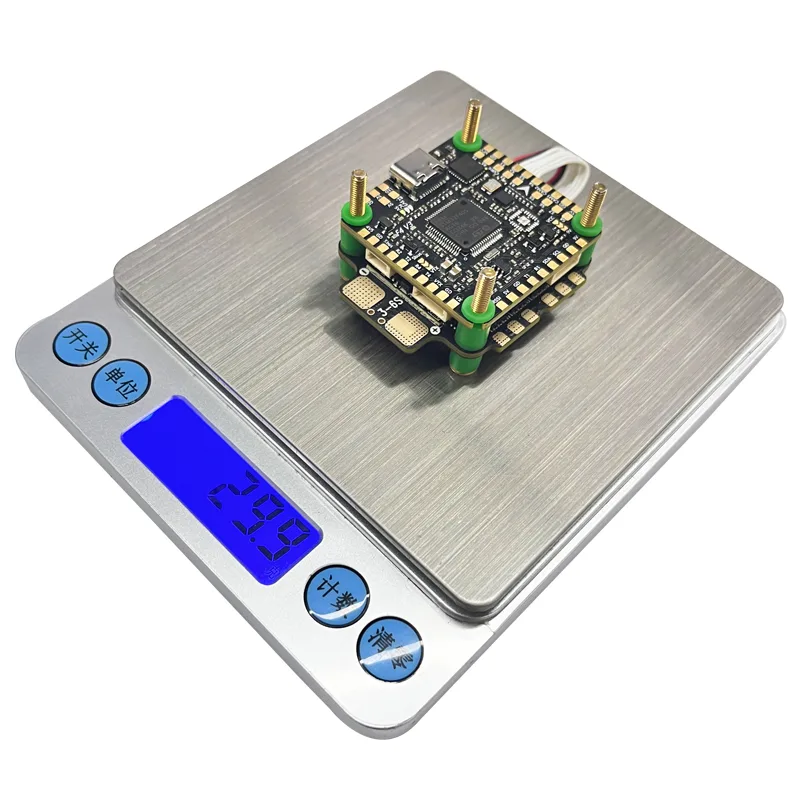

| Weight | 9.6g |

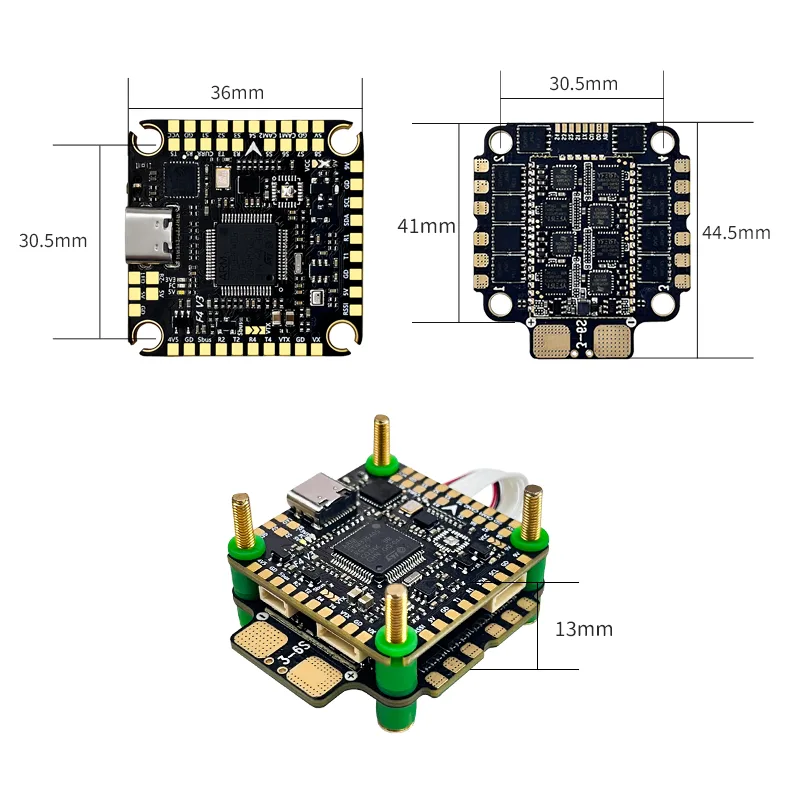

| Mounting Hole | 30.5mmx30.5mm |
| Dimension | 36mmx36mm |
| Firmware | RCF405V3/RCF405V3SD |
3060 V1 ESC Device Specifications
| Continuous Current | 60A X4 |
|---|---|
| Burst Peak Current | 70A X4 |
| Input Signal | Dshot300/Dshot600/PWM/Bi-directional Dshot |
| Telemetry | Support |
| Current Meter | Support |
| Input Voltage | 3-6S Lipo |
| Firmware Name | AM32_AT421A |
| Working Temperature | 20℃~+85℃ |
| Working Humidity | 20~95% |
| Storage Temperature | 20°CC~+70°CC |
| Weight | 13.9g |
| Mounting Hole | M3 30.5mmx30.5mm |
| Dimension | 41X44.5mm |
